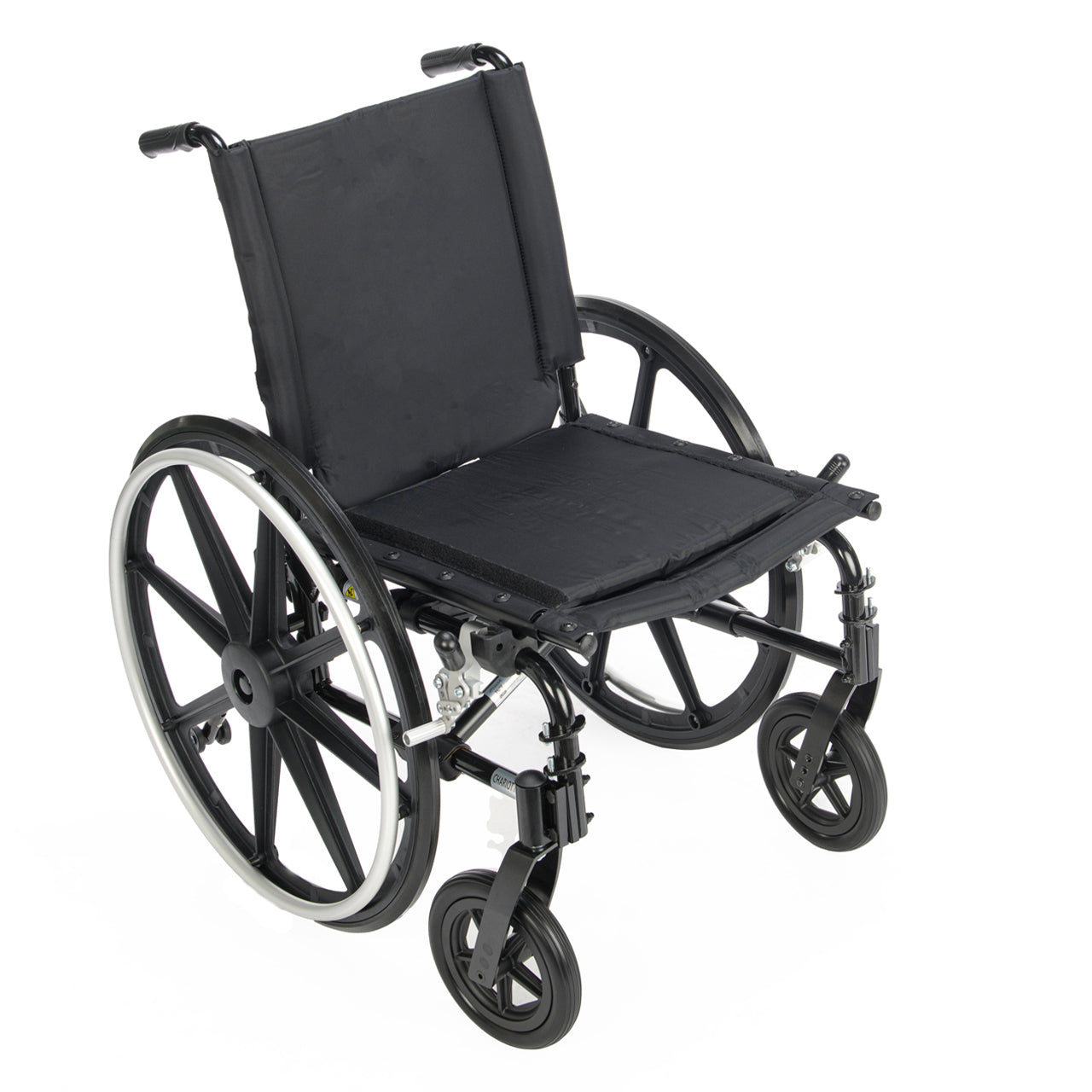

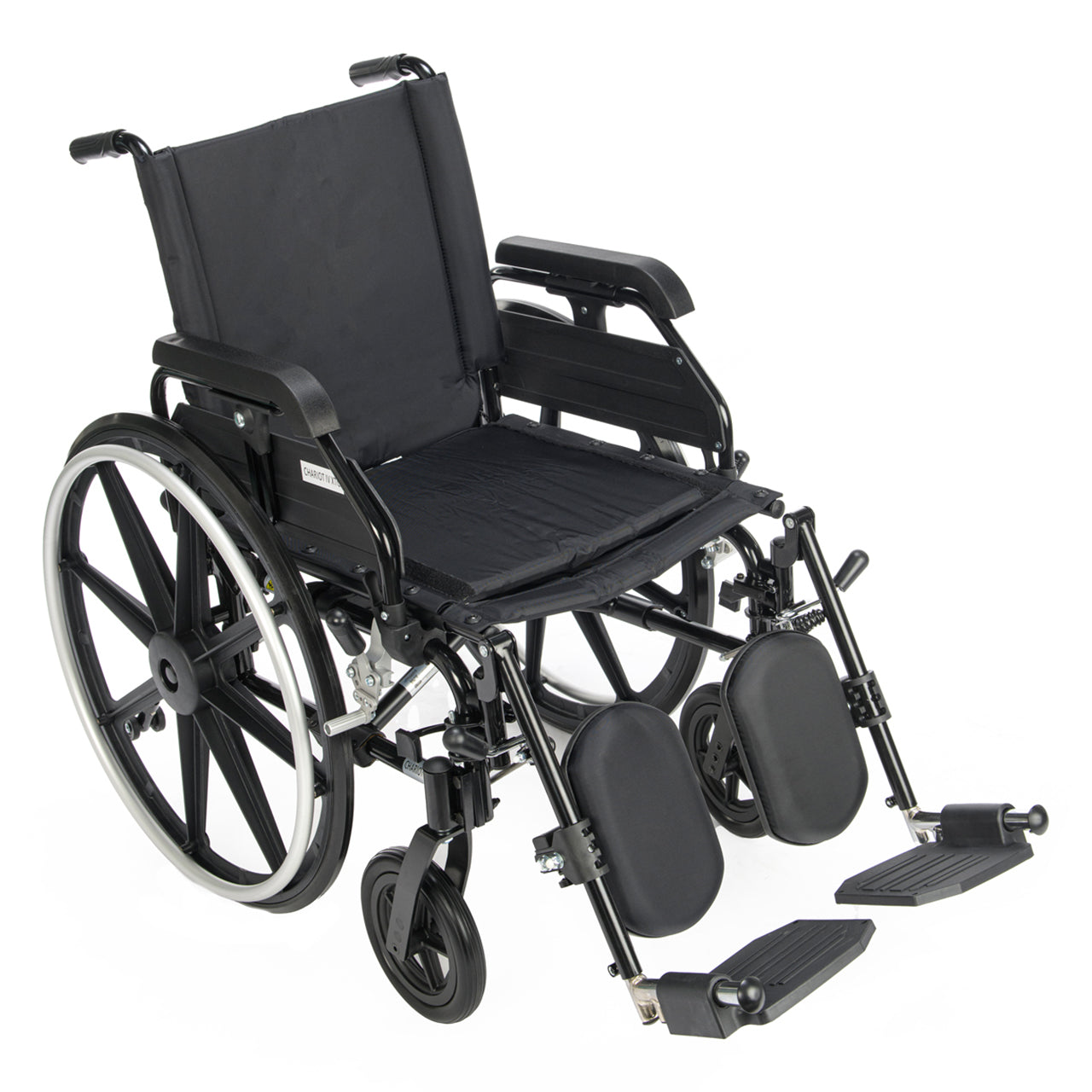

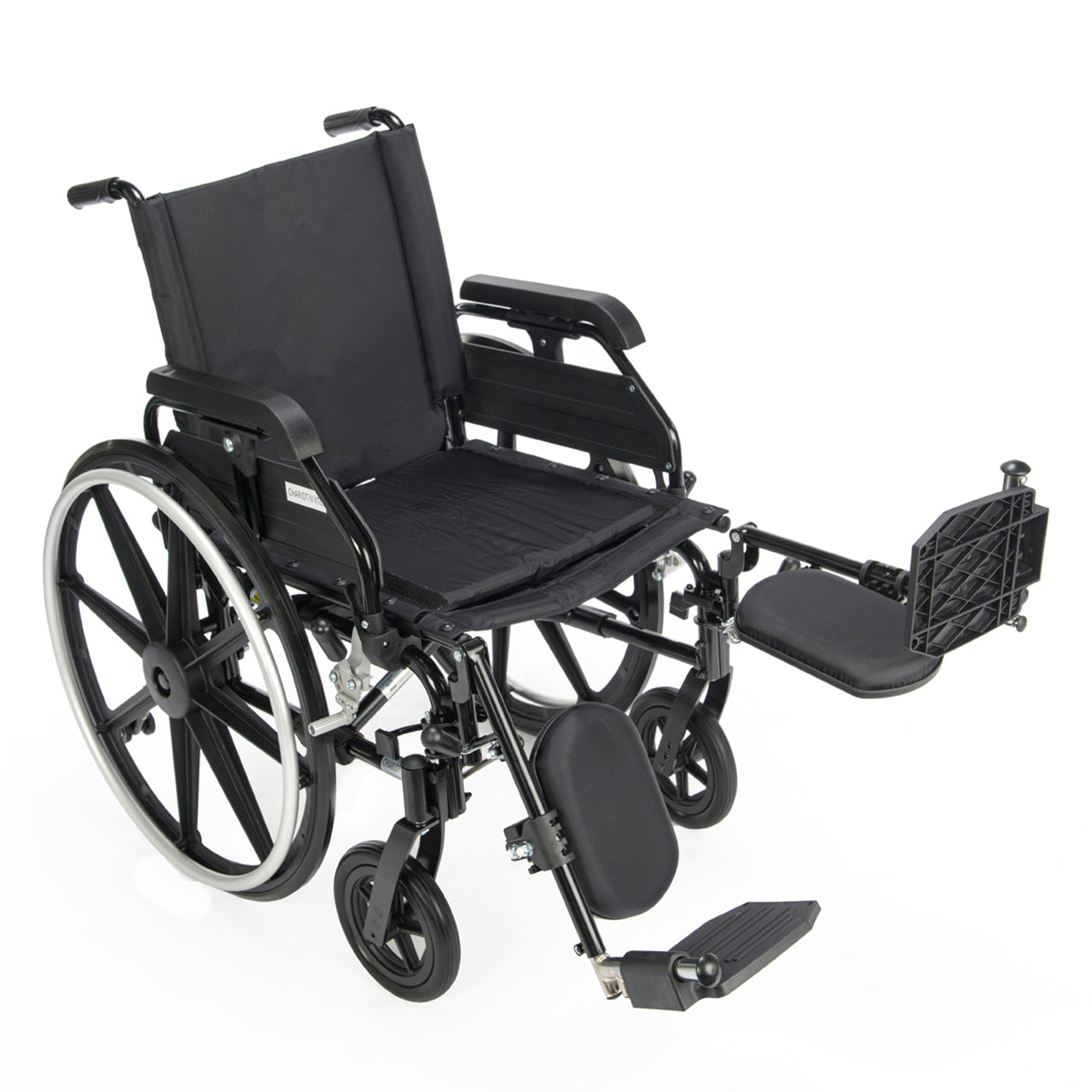

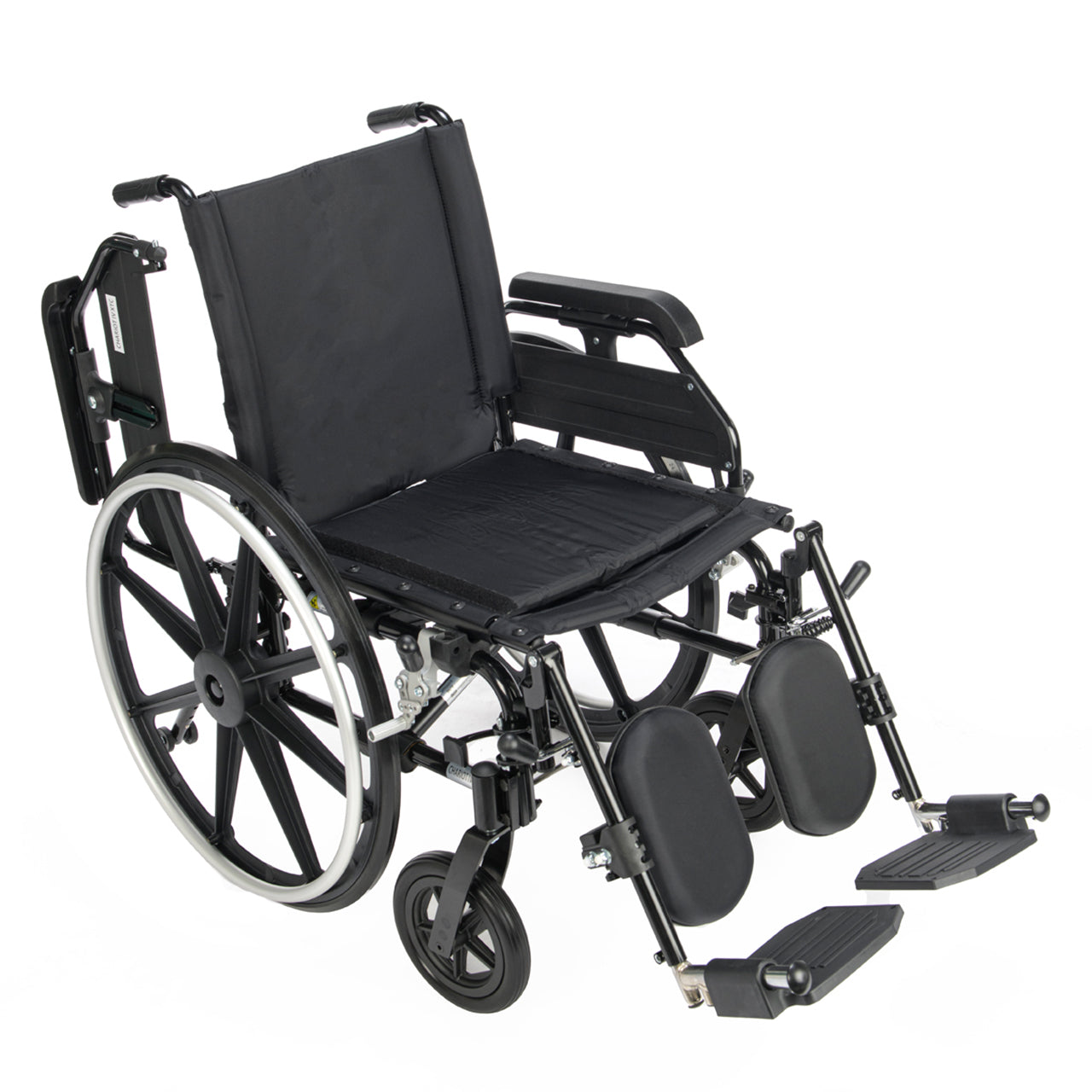

The Chariot IV XTC Wheelchair is a high-strength, lightweight, and extremely versatile mobility device. Designed to adapt seamlessly to individual patient needs, it features built-in seat rail extensions and extendable upholstery, allowing seat depth adjustments from 16” to 18”. Its dual axle design permits multiple seat-to-floor height positions, enhancing user comfort and accessibility. The wheelchair's lightweight aluminum frame ensures ease of transport without compromising durability.
Key Features
Adjustable Seat Depth: Built-in seat rail extensions and extendable upholstery adjust seat depth from 16” to 18”.
Lightweight Frame: Constructed with a durable aluminum frame, weighing under 35 lbs. in basic configuration (excluding front rigging).
Dual Axle Design: Allows for multiple seat-to-floor height positions.
Adjustable Arms: Removable, flip-back, padded desk-length arms with adjustable height.
Backrest Adjustability: Adjustable angle back (5° to 20°) and adjustable height back (17” to 19” in 1” increments).
Upholstery: Durable, heavy-gauge, flame-retardant nylon with hook and loop fastener flaps.
Wheels: Quick-release, 24” composite mag-style rear wheels; 8” urethane front casters.
Bearings: Precision-sealed wheel bearings in front and rear ensure long-lasting performance.
Footrests: Tool-free adjustable swing-away footrests.
Safety Features: Adjustable anti-tippers with flip-up wheels; push-to-lock wheel locks.
Weight Capacity: 300 lbs. (16"/18"), 350 lbs. (20"/22").
Warranty: Limited Lifetime on side frame and cross members.
Specifications
Seat Widths: 16", 18", 20", 22"
Seat Depth: 16" (18" with seat extension)
Seat-to-Floor Height: 19.5" (standard), 17.5" (hemi)
Back Height: 17" or 19"
Back Style: Detachable
Overall Width with Arms: 24" (16"), 25" (18"), 27" (20"), 29" (22")
Product Weight: 34 lbs. (16"/18"/20"), 35 lbs. (22")
Shipping Weight: 40 lbs. (16"/18"/20"), 41 lbs. (22")
Weight Capacity: 300 lbs. (16"/18"), 350 lbs. (20"/22")
Warranty: Limited Lifetime
📎 Attachments
Individual Product Sheet (PDF)
Owner’s Manual (PDF)
