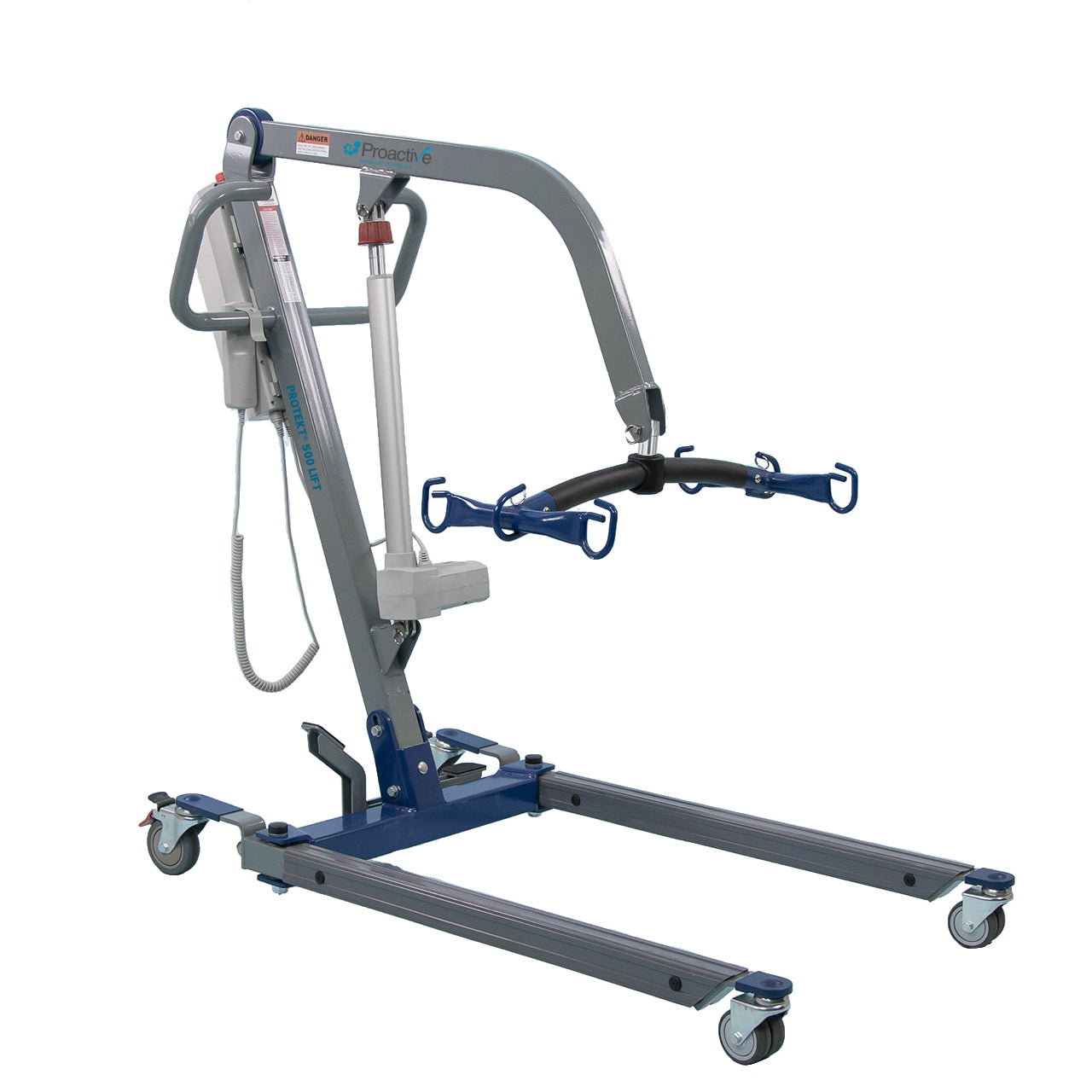

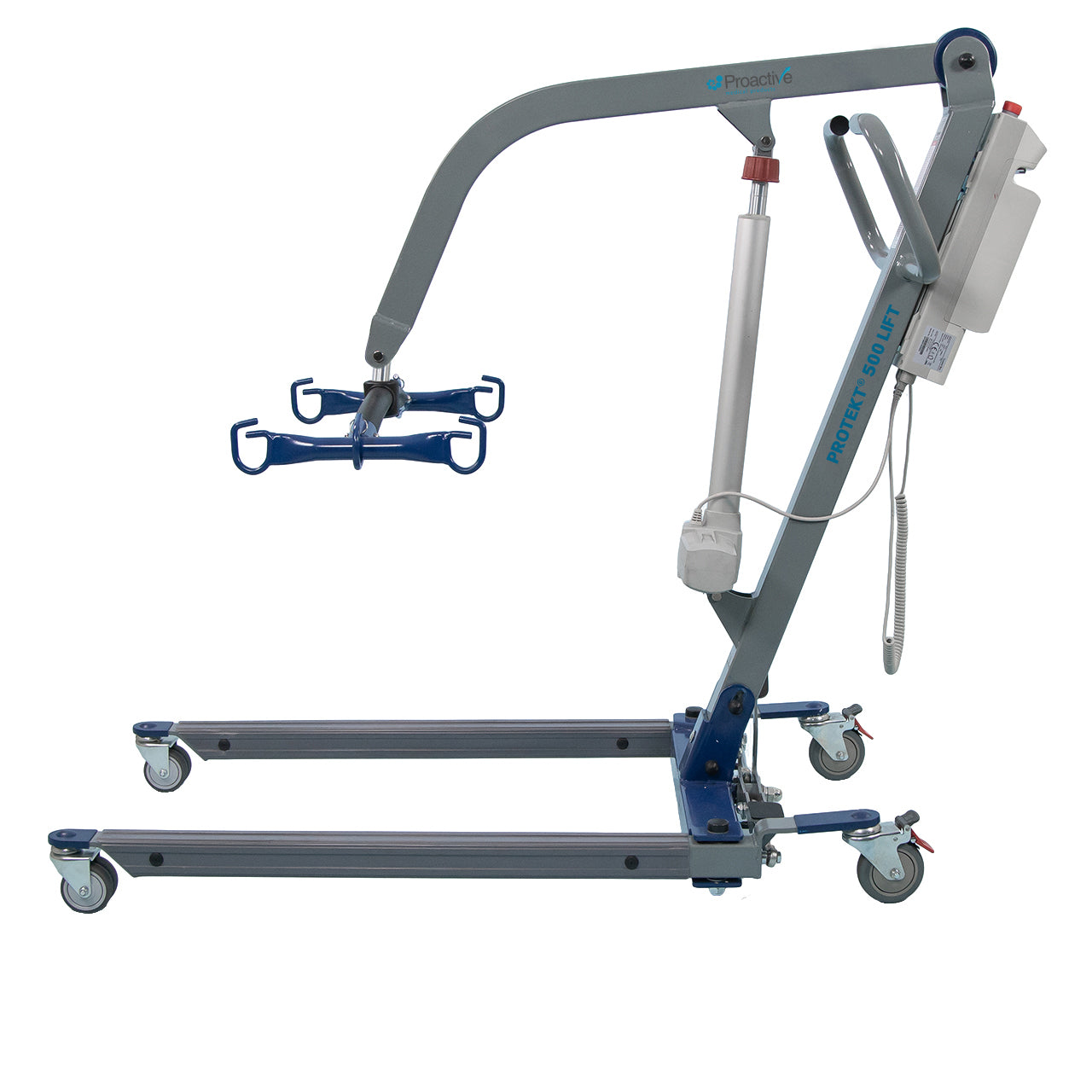

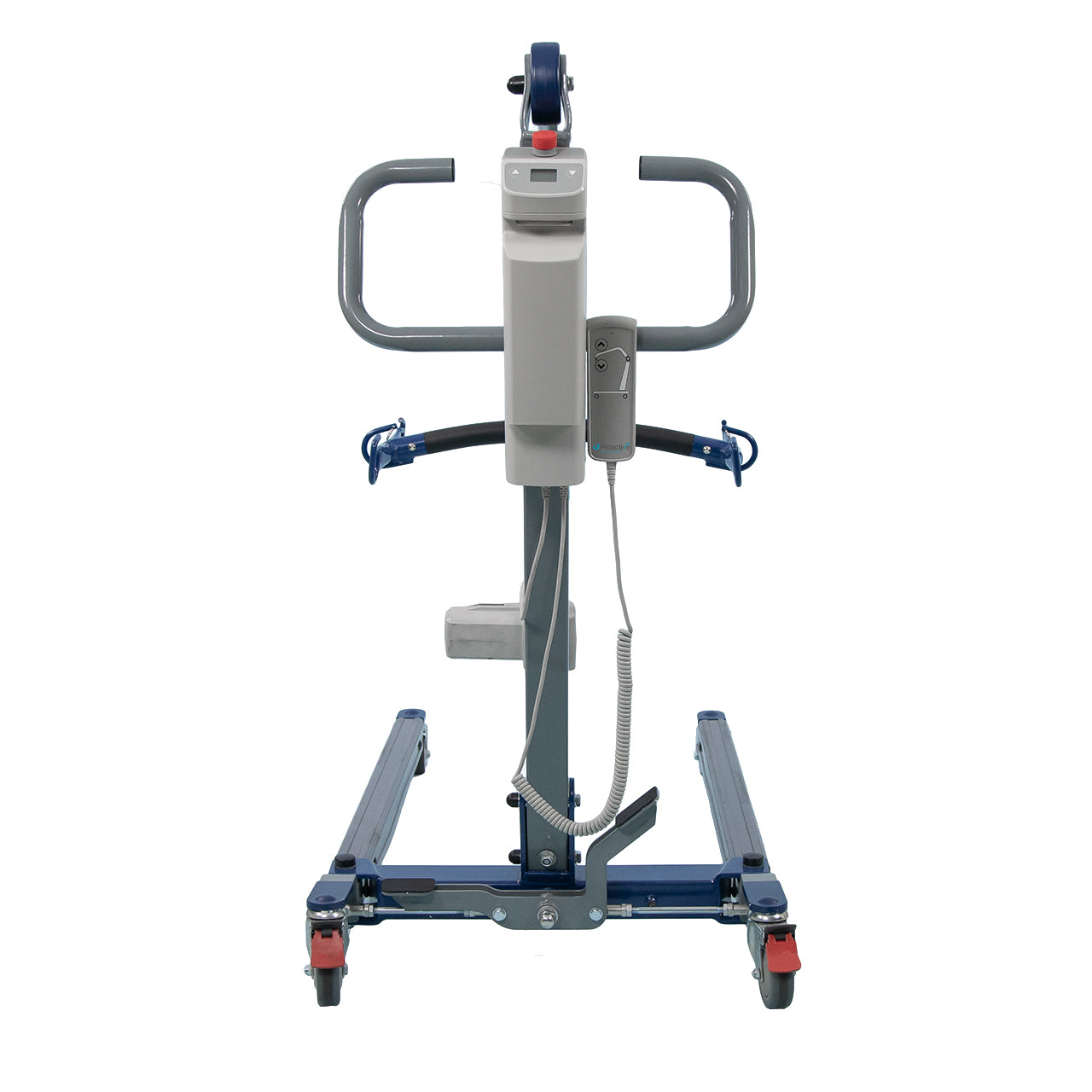

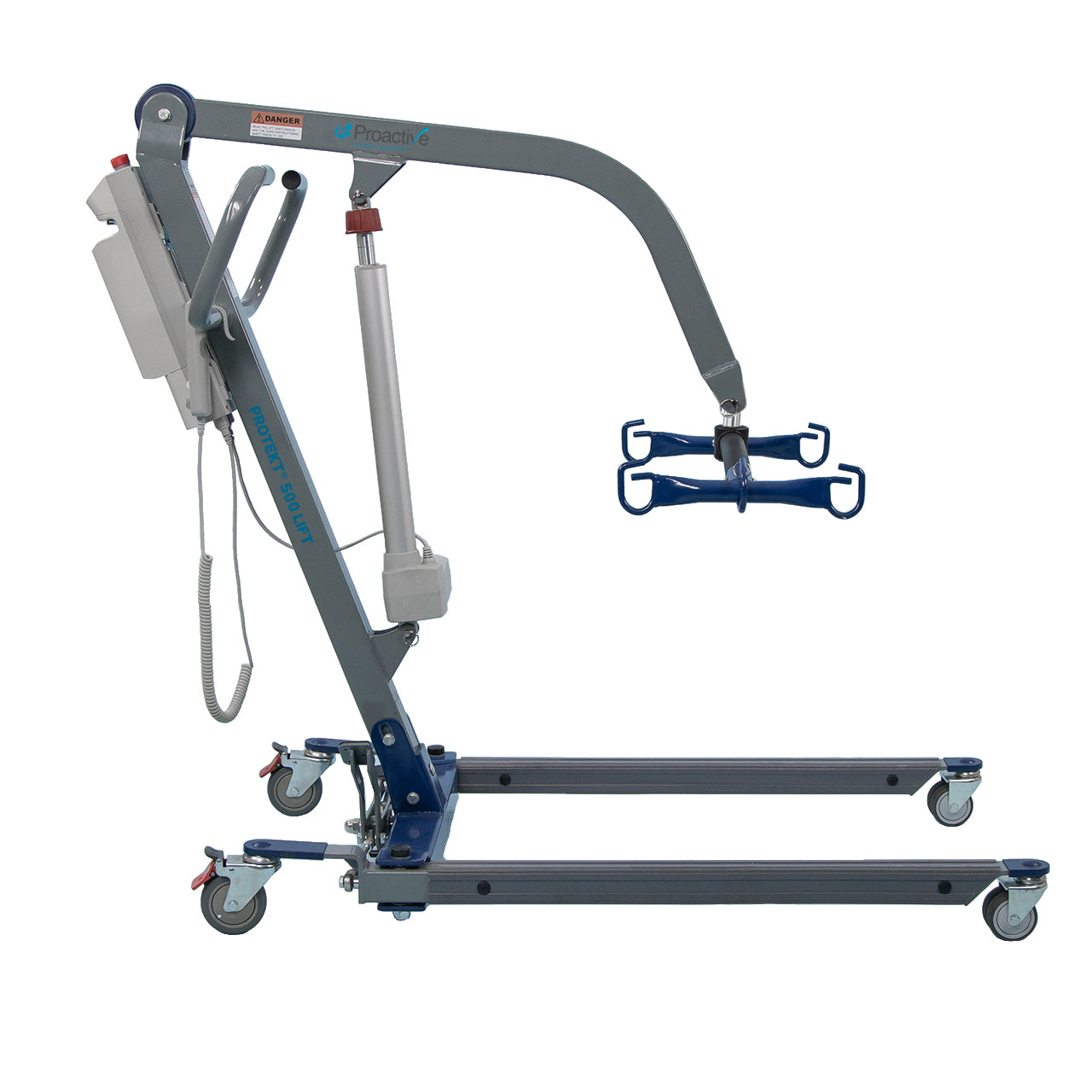

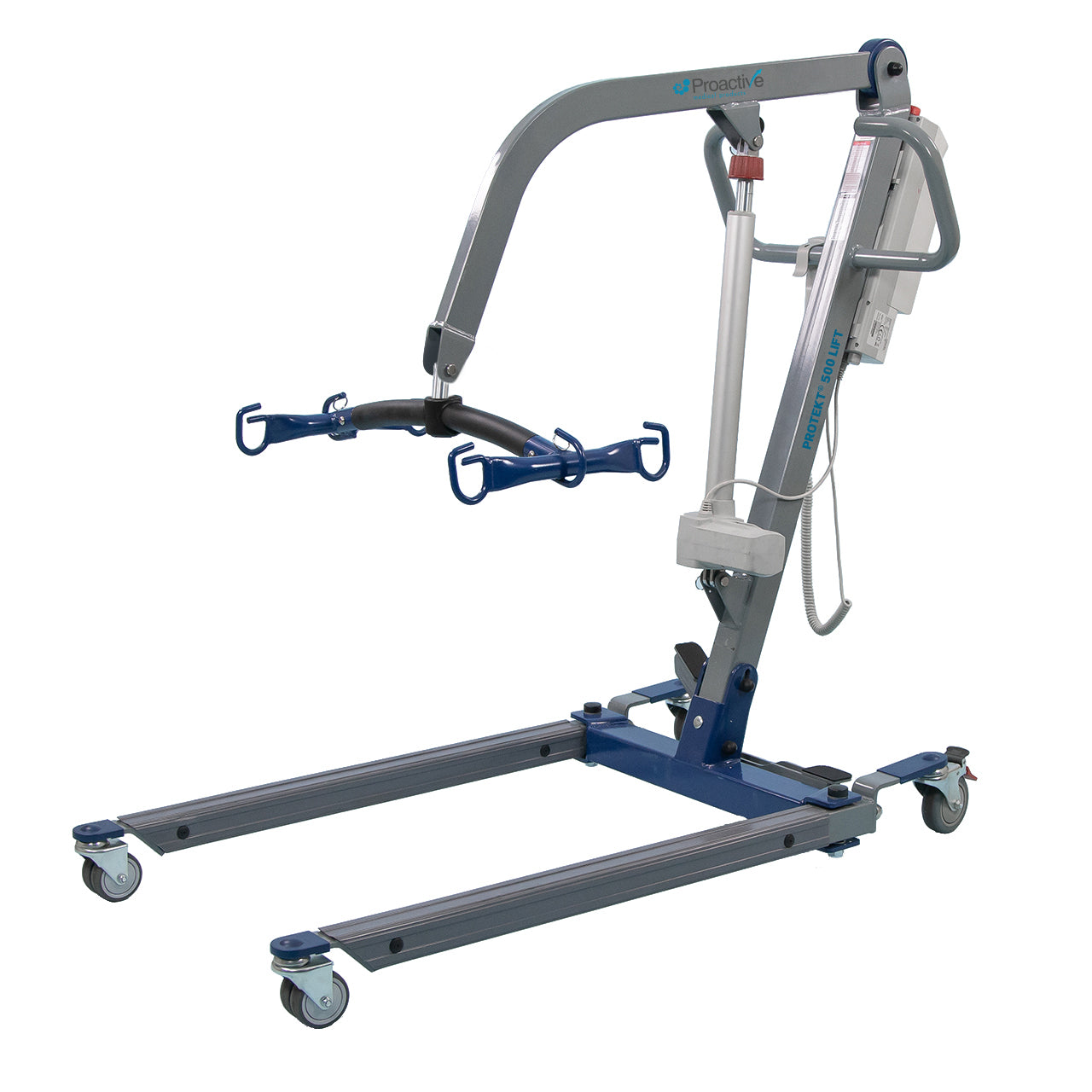

Protekt® 500 Electric Patient Lift
Protekt® 500 Electric Patient Lift
SKU:33500
Couldn't load pickup availability
The high-performance Protekt® 500 Lift is a premium electric-powered patient transfer system designed to meet the rigorous demands of both caregivers and facilities. With a robust 500 lb. weight capacity, the lift ensures safe, smooth, and efficient patient transfers, significantly reducing the risk of injury. Its six-point spreader bar offers versatile sling compatibility, while the ergonomic foot pedal allows hands-free base operation for enhanced safety. Engineered for floor lifts and compatibility with low beds, it fits under most frames with ease, making it ideal for tight spaces. Featuring advanced electronics, modular parts for easy maintenance, and optional digital scale support, the Protekt® 500 is a reliable, professional-grade solution for home and facility care.
Medicare code: E0635
500 lb. weight capacity for broader patient use
Six-point spreader bar compatible with multiple sling types
Electric-powered lift with auxiliary up/down controls
Performs floor lifts and fits under low beds
Ergonomic foot pedal for hands-free base width adjustment
Manual emergency lowering for power failure situations
Clip-free sling hook-up improves safety and reliability
Dual rear locking casters; 4” rear & 3” dual front casters
Modular design simplifies parts replacement and servicing
Optional digital scale compatible
| Feature | Protekt® 500 Lift (#33500) |
|---|---|
| Weight Capacity | 500 lbs |
| Unit Weight | 109 lbs |
| Base Length | 47.3” |
| Base Closed External Width | 26.4” |
| Base Open External Width | 39.3” |
| Mast Height | 51.3” |
| Front Caster Height | 4.9" |
| Lifting Height - Lowest | 28.7” |
| Lifting Height - Highest | 71.3” |
| Base Opened Turning Diameter | 62.8" |
| Base Closed Turning Diameter | 58.3" |
🔌 Compatible Accessories & Add-Ons (Sold Separately)
You can enhance your lift experience by adding these optional accessories:
🔋 Battery – Rechargeable power source for electric lifts
🔌 Charger with Plug – Standard charger for battery unit
🨲 Charging Cradle (No Plug) – Off-lift battery charging station
🎮 Hand Pendant – Remote control for operating lift functions

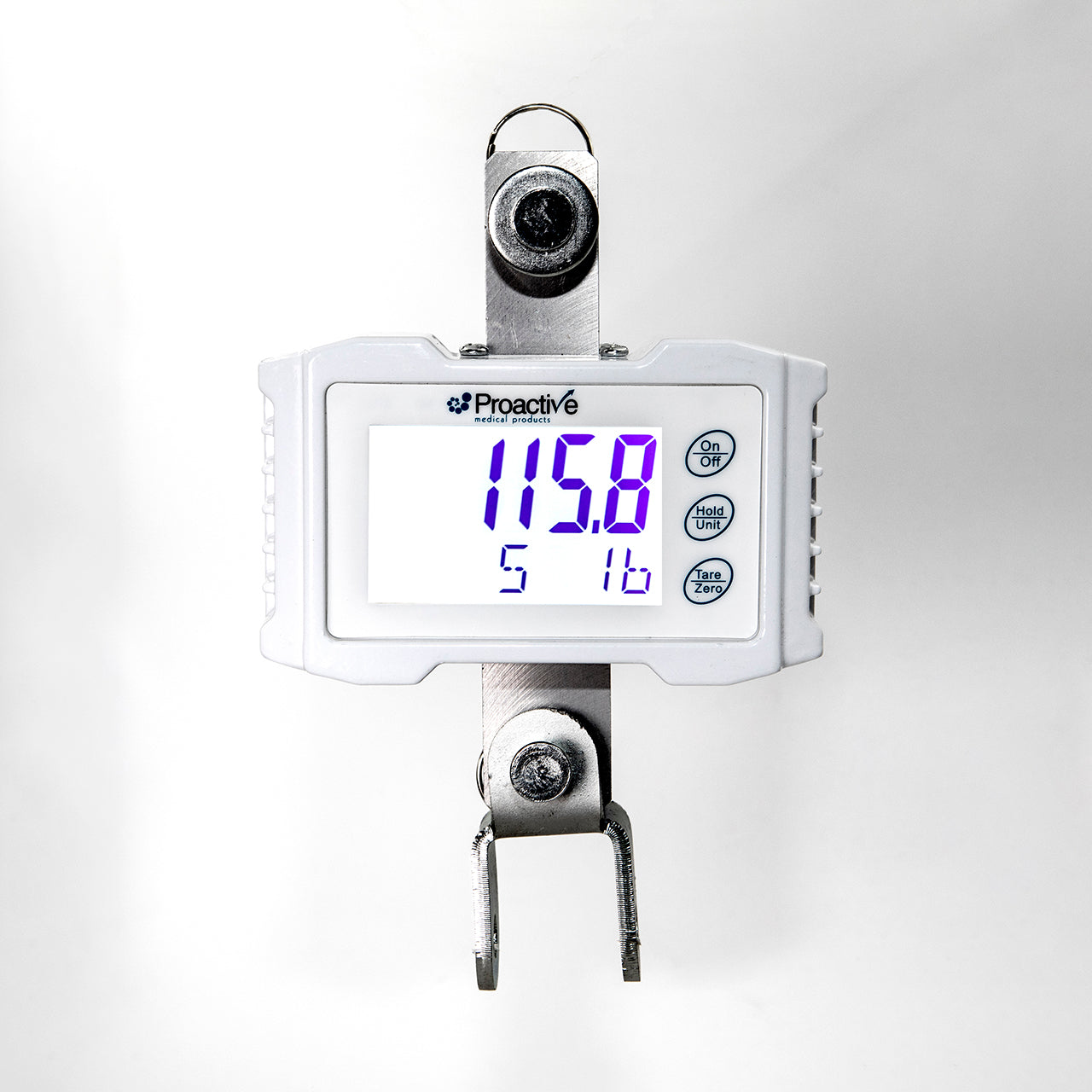

⚖️ Optional Digital Scale – Monitors patient weight in real-time
Compatible with:
Protekt® STS Compact 500, Protekt® All-In-One, Protekt® Take-A-Long, Protekt® 500 Stand, Protekt® 600 Stand, Protekt® 500 Lift, Protekt® 600 Lift
Accessories:
| Accessory | SKU |
| Battery | LP-TC12-BPAK |
| Charger (Plug) | LP-TP7C-ADP |
| Charging Cradle (No Plug) | LP-TBC2-CRDL |
| Hand Pendant | LP-TH10-PEN |
| Optional Digital Scale | 30300 |
Electronics: 2 Years
Frame: 3 Years
Battery: 1 Year
